Introduction
When IT leaders start comparing WAN options, they often talk about MPLS, DIA, SD-WAN, and internet as if they're competing products. They're not.
MPLS and DIA are connectivity services — the actual circuits carrying your traffic. Internet and broadband describe a shared access type. SD-WAN is something different entirely: an overlay that manages and steers traffic across whatever connections you already have.
For growing, multi-location organizations, mixing these categories up creates lasting problems. It affects application performance, cloud access, resilience during outages, who's responsible for security, and how much your contract renewal will cost three years from now.
The right design depends on your traffic patterns, site requirements, business-critical applications, and how much your internal IT team can realistically manage. This guide breaks down what each option actually does, where they overlap, and how to figure out which combination fits your organization.
Key Takeaways
- MPLS delivers provider-managed private connectivity; DIA is dedicated internet, not automatic site-to-site linking
- Broadband is widely available and budget-friendly, but performance guarantees vary more than dedicated services
- SD-WAN steers traffic across MPLS, DIA, or broadband; it doesn't replace the need for quality underlying links
- Most organizations land on a hybrid design, not an all-or-nothing switch
- Compare application needs, security architecture, and total cost — not just bandwidth price
MPLS vs DIA vs SD-WAN vs Internet: Quick Comparison
Architecture and Traffic Path
Each option handles traffic differently, and mixing them up leads to poor purchasing decisions.
| Option | What it actually is |
|---|---|
| MPLS | A private, provider-managed WAN built to connect business locations and data centers directly |
| DIA | A dedicated circuit from a site to the public internet, not a private link between your offices |
| SD-WAN | A software overlay and policy layer that manages traffic across your existing connections |
| Internet/Broadband | Shared, best-effort access where performance depends heavily on the specific product and provider |
MEF, the industry body that standardized SD-WAN terminology, defines SD-WAN as an overlay service that classifies application traffic and routes it across underlying connections, including both MPLS and internet access. That's the core distinction: SD-WAN sits on top of your circuits. It doesn't replace them.
Performance and Reliability
MPLS offers path control and traffic prioritization that public internet routes generally can't match for real-time or latency-sensitive applications. DIA is usually more consistent than shared broadband, but traffic still rides the public internet after the local handoff. SD-WAN can steer apps toward the better path in real time, yet it only performs as well as the underlays you give it.

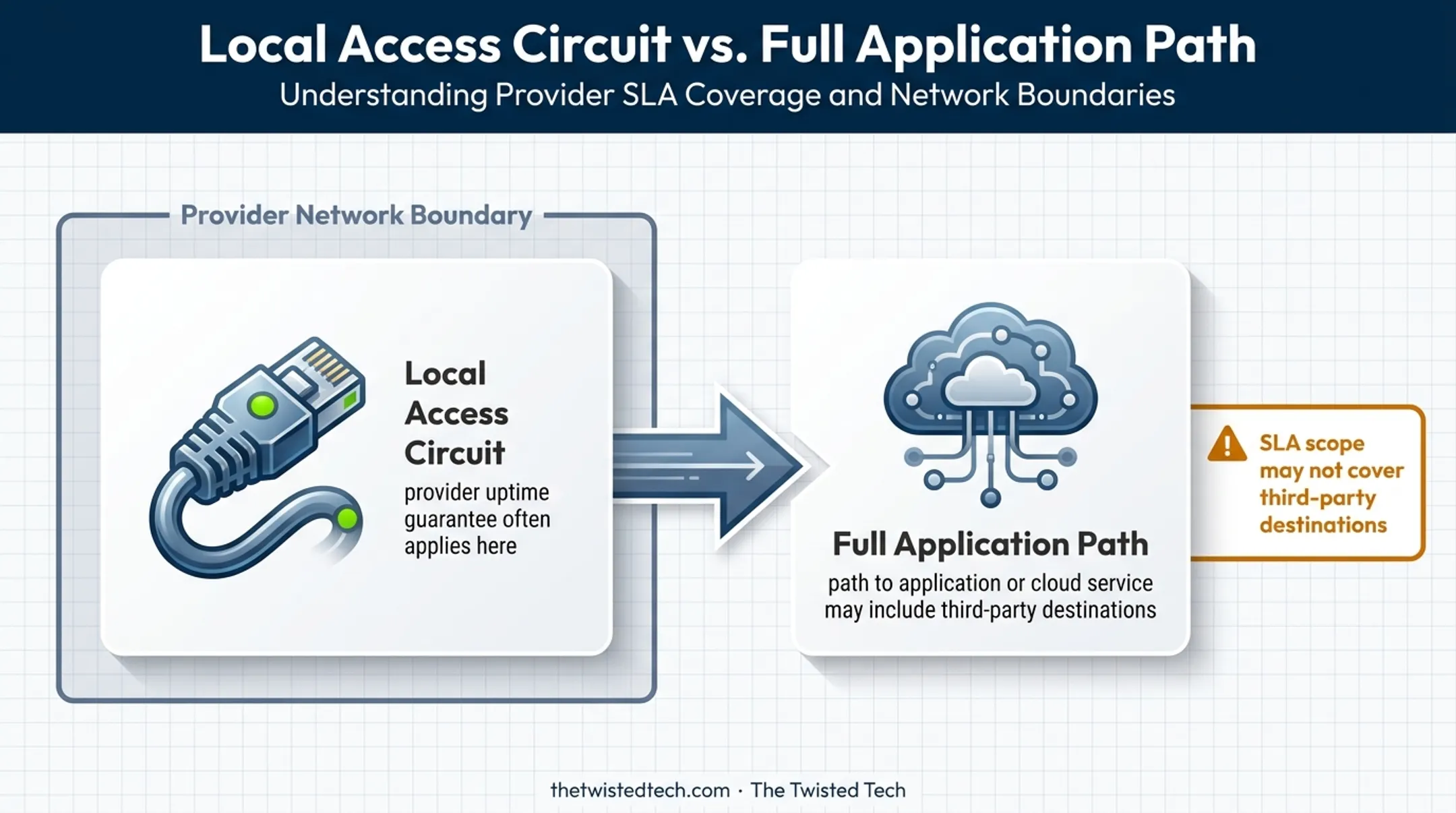

Here's the catch many buyers miss: an SLA usually covers the local access circuit, not the full path to whatever application or cloud service your users are hitting. Read your SLA carefully. A provider's uptime guarantee often applies only to points within their own network, not third-party destinations. That gap matters more than most contracts make obvious.
Security and Privacy
MPLS isolates traffic from the public internet, but that isolation isn't a cybersecurity program by itself. NIST's guidance on enterprise network security describes SD-WAN environments needing encrypted tunneling, centralized access policies, and authenticated devices, regardless of which underlying circuit carries the traffic.
Whether you're running MPLS, DIA, or broadband, you still need:
- Firewalls and segmentation
- Encryption for sensitive data in transit
- Identity-based access controls
- Ongoing monitoring and incident response
Cost, Scalability, and Deployment
Skip the "MPLS is always more expensive" shortcut. Validate it for your specific sites. What's generally true:
- DIA and broadband often have broader availability and faster provisioning in many markets
- MPLS upgrades typically require more carrier coordination and lead time
- Total cost includes circuits, hardware, licensing, managed services, security tools, and migration, not just the monthly bill
Best-Fit Use Cases
- MPLS: Controlled site-to-site connectivity, predictable handling for real-time or legacy applications, specific compliance needs
- DIA: Cloud-first sites, high-bandwidth SaaS access, locations needing a dedicated internet on-ramp
- SD-WAN: Distributed organizations wanting centralized policy, application-aware routing, and failover across multiple links
- Broadband: Smaller sites, backup connectivity, temporary locations, or noncritical traffic
What Are MPLS, DIA, SD-WAN, and Internet?
What Is MPLS?
Multiprotocol Label Switching is a carrier-provided private WAN service. It uses engineered paths that can support traffic prioritization and service-level commitments between your connected locations.
The upside: predictability, provider management, and controlled site-to-site performance. The trade-off: higher expense, longer provisioning windows, and less flexibility when your locations or traffic patterns shift.
MPLS tends to fit organizations with stable branch-to-branch traffic or legacy systems tied to specific network behavior. It also suits latency-sensitive workloads where consistency outweighs cost. Whether that premium is justified depends on your traffic patterns, locations, and performance requirements.
What Is DIA?
Dedicated Internet Access is a dedicated, typically symmetrical business internet circuit with reserved bandwidth and contractual commitments. That's the key difference from shared broadband: you're not competing with other tenants in your building for capacity.
DIA improves your internet and cloud on-ramp, but it doesn't automatically create a private, encrypted network between your offices. If you need that, you're looking at a VPN, SD-WAN, or a separate private connection layered on top.
DIA fits well for:
- Cloud and SaaS-heavy operations
- Large file uploads and downloads
- Video collaboration at scale
- Sites needing more consistency than standard broadband delivers
What Is SD-WAN?
SD-WAN is a centrally managed overlay that identifies applications, monitors network conditions, and applies policies to select or combine available paths (MPLS, DIA, broadband, even wireless).

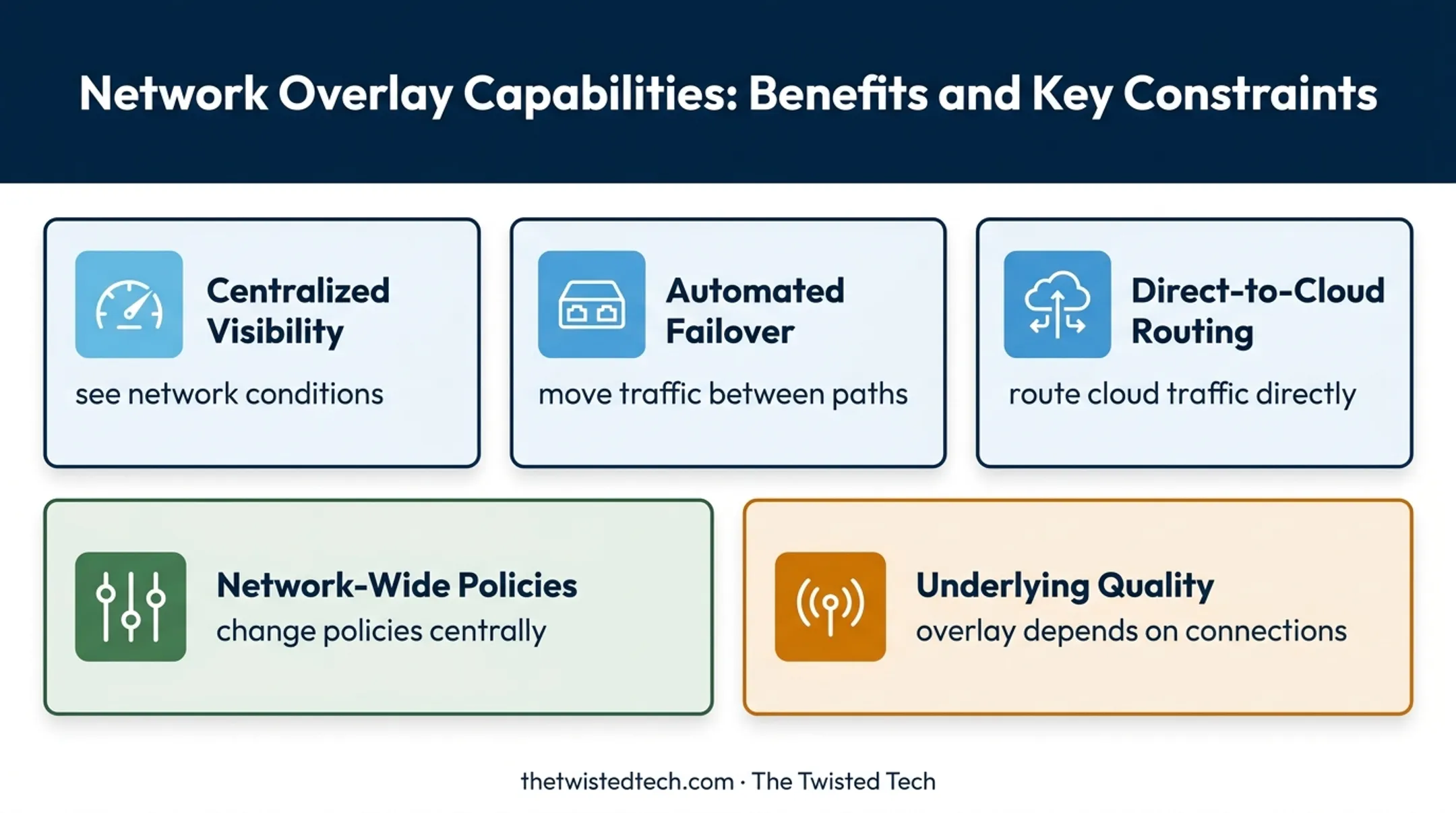

Practical benefits include centralized visibility, automated failover, direct-to-cloud routing, and the ability to change policies network-wide without touching every device individually.
What SD-WAN doesn't do: it can't make a poor-quality broadband connection perform like a dedicated circuit. The overlay is only as good as what it's managing.
Before deploying, evaluate:
- Edge device requirements at each site
- Security integration, built-in or separately deployed
- Management and monitoring responsibilities
- Interoperability with your existing infrastructure
What Is Standard Internet or Broadband?
Standard business internet is generally shared or best-effort access. Uptime commitments, symmetry, and congestion risk vary significantly by provider and product — there's no universal standard here.
Broadband works well as a primary link for smaller sites, a backup for larger ones, or an underlay in an SD-WAN design. Lowest price shouldn't be the only factor, though. Compare these points against DIA before deciding:
- Dedicated versus shared access
- Symmetrical versus asymmetrical bandwidth
- SLA scope and static addressing
- Support model and restoration commitments
- Real-world performance during peak hours
Which Connectivity Option Is Better?
"Better" depends on what you're connecting, where your traffic is headed, how much disruption your business can absorb, and who's going to operate the environment day to day.
Evaluate Your Application and Traffic Patterns
Before choosing a service, map out your real-time voice and video needs, ERP traffic, backups, cloud and SaaS usage, and branch-to-branch data flows.
Centralized backhauling through a data center can add unnecessary latency and cost for cloud-bound traffic. Direct internet breakout or SD-WAN policy control is often a better fit for those workloads.
Evaluate Site Footprint and Resilience
Consider your number and type of locations, carrier availability at each address, and what happens when a single circuit fails. Ask yourself:
- Do we need one primary connection, or dual diverse paths?
- Is wireless backup a realistic option for critical sites?
- How does last-mile diversity affect our risk?
Evaluate Security, Compliance, and Responsibility
Private connectivity, dedicated access, and encrypted overlays solve different problems. Map each to firewalls, segmentation, identity-based access, and monitoring. Then identify who actually owns security policy, patching, and troubleshooting — the carrier, the SD-WAN provider, or your internal team. Unclear ownership is a common source of delayed incident response.
Evaluate Total Cost and Operational Complexity
Compare circuit charges, hardware, licensing, installation, managed support, and migration costs together — not in isolation. SD-WAN can reduce underlay costs in some designs, but it introduces platform selection and ongoing policy management as new responsibilities.
Situational Recommendations
Once those factors are clear, match the option to the job:
- MPLS fits when predictable private performance or legacy applications justify the premium
- DIA is the stronger choice when direct, dedicated cloud access is the priority and security is designed in
- SD-WAN works well when you need centralized control across multiple links and a gradual path off a single-provider WAN
- Broadband suits low-risk, smaller, or backup use cases after you validate availability and support
A hybrid model is often the most practical answer when different sites or applications have genuinely different requirements.
Real-World Scenarios and Migration Considerations
Real deployments rarely replace MPLS, DIA, SD-WAN, or broadband in a single cutover. These patterns show how the options usually coexist while organizations modernize.
Multi-location organization modernizing a legacy WAN

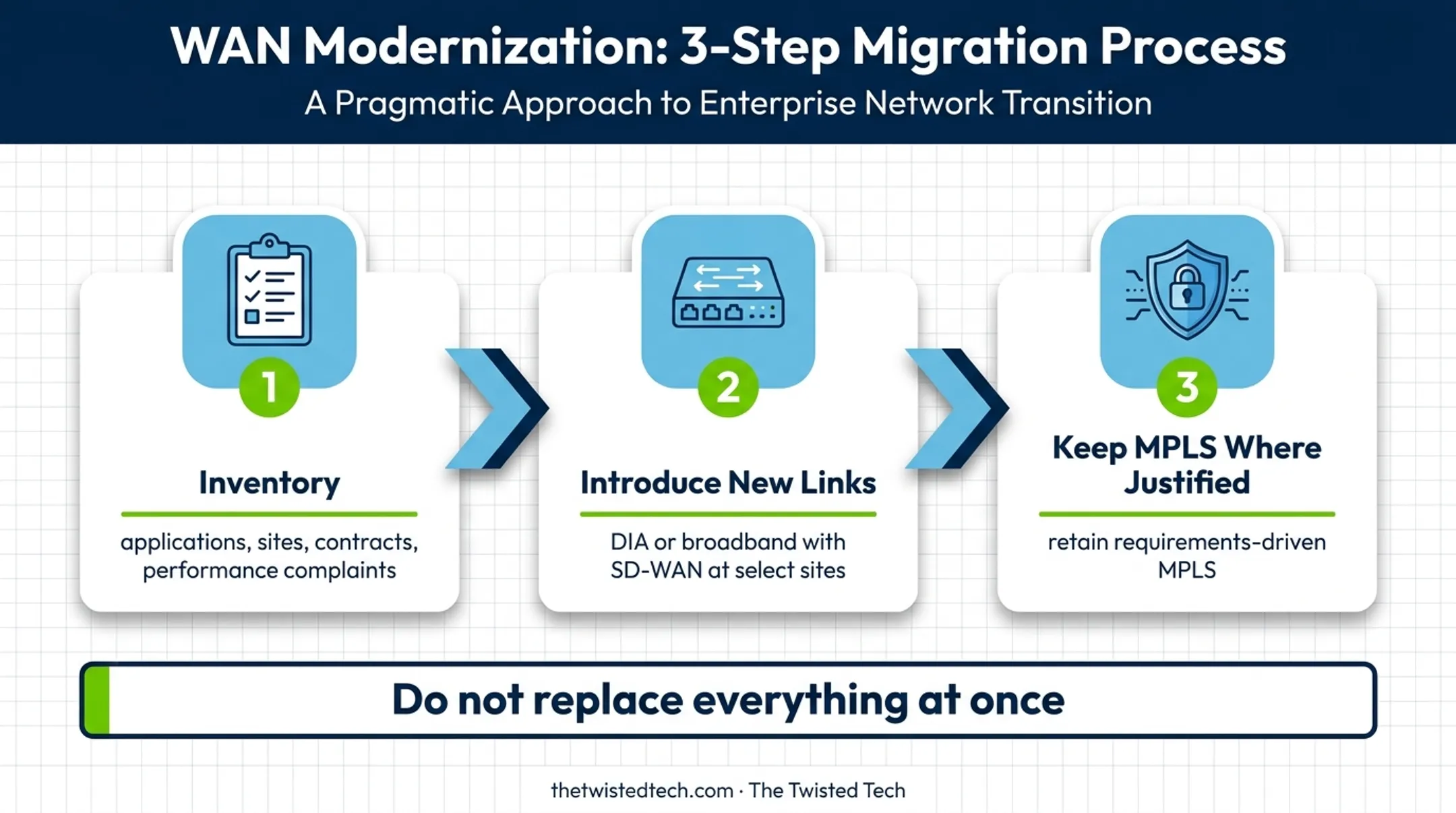

A typical modernization path starts with an inventory: current applications, sites, circuit contracts, and performance complaints. From there, organizations introduce DIA or broadband with SD-WAN at select sites, while keeping MPLS where requirements still justify it, rather than ripping everything out at once.
Requirements come first: business needs, locations, users, applications, growth plans, and resiliency targets before any technology or provider shortlist. That sequence is where The Twisted Tech's Connectivity, Network & Infrastructure Advisory work usually begins.
Cloud-first organization with heavy SaaS use
Direct internet access can cut unnecessary backhaul for cloud-bound traffic. That shift still requires security inspection, identity controls, and redundancy planning. DIA alone does not solve those pieces.
Small or temporary site with limited IT resources
Broadband or DIA paired with managed security or SD-WAN can offer a practical balance of availability, cost, and centralized control, assuming local service availability and business criticality support it.
Migration Checklist Before Replacing MPLS
- Inventory everything: circuits, applications, bandwidth utilization, latency, packet loss, jitter, and contract renewal dates
- Validate provider terms: SLAs, installation timelines, escalation paths, monitoring access, and failover behavior
- Pilot before you commit: test representative sites and applications, with success measured by user experience, not marketing claims
The Twisted Tech works as an independent, vendor-neutral resource through this process. The team helps organizations define requirements, compare provider options, evaluate proposals, and coordinate implementation without locking into one carrier or architecture upfront.
Conclusion
MPLS, DIA, SD-WAN, and internet aren't interchangeable products, and treating them that way leads to costly mismatches. SD-WAN in particular should be evaluated as an overlay: one that depends entirely on the quality and design of whatever connections sit underneath it.
Align your network decision with the factors that actually drive fit:
- Application performance needs
- Cloud access patterns
- Resilience and failover
- Security requirements
- Budget
- Internal IT capacity
A hybrid or phased approach often delivers better results than an abrupt, all-at-once replacement, especially when contract renewal timing gives you room to plan. Map those factors against current traffic and contracts before you lock in any single path.
Frequently Asked Questions
Can I replace MPLS with SD-WAN?
SD-WAN can support an MPLS replacement in many environments by managing DIA, broadband, or other links instead. The right decision depends on your application requirements, security design, and site conditions.
What is the difference between MPLS and SD-WAN?
MPLS is a private WAN connectivity service: an actual circuit. SD-WAN is an overlay that manages traffic across MPLS, DIA, broadband, and other underlays.
Can I use MPLS with SD-WAN?
Yes. SD-WAN can use MPLS as one of several paths, applying policies like prioritization or failover while gradually introducing other connection types.
Which is better, MPLS or VPN?
They address different needs. MPLS provides provider-managed private WAN connectivity, while a VPN creates an encrypted tunnel over an underlying network. Compare performance, security controls, and site count before deciding.
Is DIA better than broadband for business?
DIA offers dedicated access, more predictable bandwidth, and stronger service commitments, often with symmetrical speeds. Broadband may be more affordable or widely available. Suitability depends on your business criticality and budget.
Do I need SD-WAN if I use DIA?
DIA can operate without SD-WAN for straightforward internet access. SD-WAN becomes valuable when you need multiple links, application-aware routing, or automated failover across sites.
